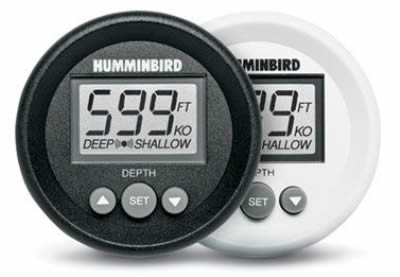

Humminbird HDR 610Depth Sounders
The HDR 610 In-Dash Digital Depth Sounder provides
reliable digital depth readings, and offers
customizable bezel and face colors to complement
installed gauges.
 |
Display
Size: 1.25" diagonal |
|
Display
Type: LCD |
|
Single Beam |
|
Sonar
Coverage 200 kHz / 20° @ -10db |
| |
|
|
Backlight:
Yes |
|
Waterproof:
Yes |
| |
|
| |
|
| |
|
|
| |
|
|
|
Humminbird

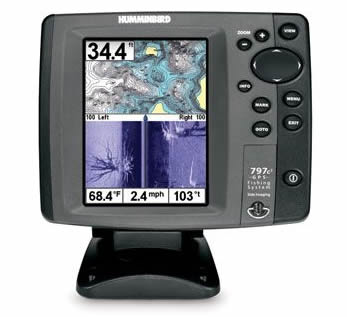

797c2i SI Combo700 Series
The
797c2i SI Combo features a brilliant color, ultra-high
resolution 640V x 480H 5" display,
Side Imaging and DualBeam PLUS sonar with 4000
Watts PTP power output, GPS Chartplotting with
built-in UniMap, and advanced Fishing System
capabilities. Includes internal GPS receiver.
|
Display
Size: 5.0" diagonal |
|
Display Pixel Matrix: 640V x 480H |
|
Display Type: 256 Color TFT |
|
Display Colors/Grayscale: 256 Colors |
|
DualBeam PLUS |
|
Sonar
Coverage 200 kHz / 20° @ -10db |
|
83
kHz / 60° @ -10db |
| |
|
|
Side Imaging |
|
Sonar
Coverage 455 kHz / (2) 86° @
-10db |
| |
|
|
Sonar Optional: QuadraBeam PLUS |
|
Target Separation: 2.5 inches |
|
Power Output (RMS): 500 Watts (RMS) |
|
Power Output (Peak to Peak): 4000 Watts
(Peak-to-Peak) |
| |
|
|
Temperature: Included |
|
Speed: GPS Speed Included |
|
Backlight: Yes |
|
Waterproof: Yes |
|
Mount: Quick Disconnect |
|
Unit
Size: 6.9" W x 7.5" H x
4.5" D |
|
Mount: Optional In-dash |
|
Unit
Size: 6.9" W x 5.4" H x
1.25" D |
|
Transducer - Standard: XNT-9-SI-180-T |
|
Transducer Mounting: Transom |
|
Power Input: 10-20 VDC |
|
| |
|
|
|

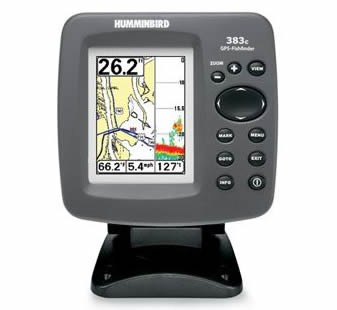

383c Combo300 Series
The 383c Combo features a brilliant color 320V
x 240H 3.5" display, advanced DualBeam
PLUS sonar with 2400 Watts PTP power output,
and GPS Chartplotting with built-in UniMap.
|
Display
Size: 3.0" diagonal |
|
Display Pixel Matrix: 320V x 240H |
|
Display Type: 256 Color TFT |
|
Display Colors/Grayscale: 256 Colors |
|
DualBeam PLUS |
|
Sonar
Coverage 200 kHz / 20° @ -10db |
|
83
kHz / 60° @ -10db |
| |
|
|
Target Separation: 2.5 inches |
|
Power Output (RMS): 300 Watts (RMS) |
|
Power Output (Peak to Peak): 2400 Watts
(Peak-to-Peak) |
|
Temperature: Included
|
|
Speed: GPS Speed Included |
|
Backlight: Yes |
|
Waterproof: Yes |
|
Mount: Quick Disconnect |
|
Unit
Size: 5.25" W x 7.4" H
x 4" D |
|
Mount: Optional In-dash |
|
Unit
Size: 5.25" W x 5.12" H
x 1.12" D |
|
Transducer - Standard: XNT-9-20-T |
|
Transducer Mounting: Inside Hull or Transom |
|
Power Input: 10-20 VDC |
|
| |
|
| |
Matrix

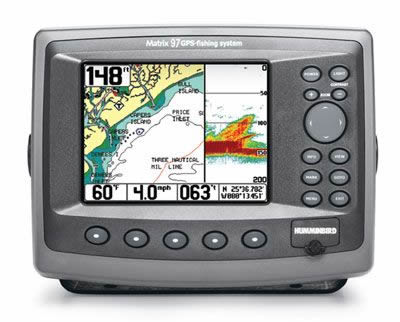

97 Combo Matrix Series
The Matrix 97 Combo features a brilliant
color 240V x 320H 5" display, DualBeam
PLUS sonar with 4000 Watts PTP power output,
GPS
Chartplotting with built-in UniMap, and advanced
Fishing System capabilities.
|
Display
Size: 5.6" diagonal |
|
Display Pixel Matrix: 240V x 320H |
|
Display Type: 256 Color TFT |
|
Display Colors/Grayscale: 256 Colors |
|
DualBeam PLUS |
|
Sonar
Coverage 200 kHz / 20° @ -10db |
|
83
kHz / 60° @ -10db |
| |
|
|
Sonar Optional: QuadraBeam PLUS |
|
Target Separation: 2.5 inches |
|
Power Output (RMS): 500 Watts (RMS) |
|
Power Output (Peak to Peak): 4000 Watts
(Peak-to-Peak) |
|
Temperature: Included |
|
Speed: GPS Speed Included |
|
Backlight: Yes |
|
Waterproof: Yes |
|
Mount: In-dash |
|
Unit
Size: 7" H x 9" W x 3" D |
|
Mount: Gimbal |
|
Transducer - Standard: XNT-9-20-T |
|
Transducer Mounting: Inside Hull or Transom |
|
Power Input: 10-20 VDC |
|
| |
|
| |

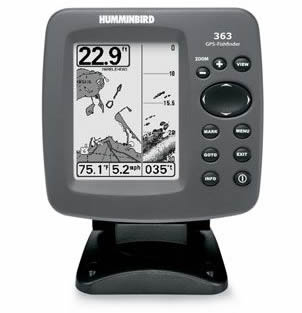

363 Combo300 Series
The 363 Combo features a high resolution 16 level
grayscale 320V x 240H 4" display, DualBeam
PLUS sonar with 2400 Watts PTP power output,
and GPS Chartplotting with built-in UniMap.
|
Display
Size: 4.0" diagonal |
|
Display Pixel Matrix: 320V x 240H |
|
Display Type: FSTN LCD |
|
Display Colors/Grayscale: 16 Level Grayscale |
|
DualBeam PLUS |
|
Sonar
Coverage 200 kHz / 20° @ -10db |
|
83
kHz / 60° @ -10db |
| |
|
|
Target Separation: 2.5 inches |
|
Power Output (RMS): 300 Watts (RMS) |
|
Power Output (Peak to Peak): 2400 Watts
(Peak-to-Peak) |
|
Temperature: Included |
|
Speed: GPS Speed Included |
|
Backlight: Yes |
|
Waterproof: Yes |
|
Unit
Size: 5.25" W x 7.4" H
x 4" D |
|
Unit
Size: 5.25" W x 5.12" H
x 3.4" D |
|
Transducer - Standard: XNT-9-20-T |
|
Transducer Mounting: Inside Hull or Transom |
|
Power Input: 10-20 VDC |
|
| |
|
| |

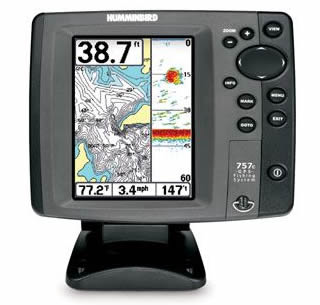

757c Combo CHO700 Series
The 757c Combo CHO features a brilliant color
320V x 240H 5" display, DualBeam PLUS
sonar with 4000 Watts PTP power output, GPS
Chartplotting with built-in UniMap, and advanced
Fishing System capabilities. Transducer not
included.
|
Display
Size: 5.0" diagonal |
|
Display Pixel Matrix: 320V x 240H |
|
Display Type: 256 Color TFT |
|
Display Colors/Grayscale: 256 Colors |
|
DualBeam PLUS |
|
Sonar
Coverage 200 kHz / 20° @ -10db |
|
83
kHz / 60° @ -10db |
| |
|
|
Sonar Optional: QuadraBeam PLUS |
|
Target Separation: 2.5 inches |
|
Power Output (RMS): 500 Watts (RMS) |
|
Power Output (Peak to Peak): 4000 Watts
(Peak-to-Peak) |
|
Temperature: Optional |
|
Speed: GPS Speed Included |
|
Backlight: Yes |
|
Waterproof: Yes |
|
Mount: Quick Disconnect |
|
Unit
Size: 6.9" W x 7.5" H
x 4.5" D |
|
Mount: Optional In-dash |
|
Unit
Size: 6.9" W x 5.4" H
x 1.25" D |
|
Transducer Mounting: Inside Hull or Transom |
|
Power Input: 10-20 VDC |
|
| |
|
| |
VHF255swVHF Radios
The VHF255sw fixed-mount marine radio features
a rugged, submersible design with 25/1 Watt
power output, all USA/INTL channels and advanced
Digital Selective Calling (DSC) technology.
Color: white.
|
Display
Size: 2.5" diagonal |
|
Display Type: Backlit LCD |
|
Channels:
All U.S., International & Canada
Channels |
|
Weather Channels: 10 Channels w/NOAA Weather
Alert |
|
Power Output: 1w or 25w (user selectable) |
|
Frequency Range (Transmit): 156.025 - 157.425
mHz |
|
Frequency Range (Receive): 156.050 - 163.275
mHz |
|
Digital Selectivity Calling (DSC): Class
D (EN301025) |
|
Submersion Standard: JIS-7, 1 meter 30
minutes |
|
Size:
6.375" W x 2.75" H x 5.25" D |
|
| |
|
| |
VHF255sVHF Radios
The VHF255s fixed-mount marine radio
features a rugged, submersible design with 25/1
Watt power output, all USA/INTL channels
and advanced Digital Selective Calling
(DSC) technology. Color: black.
|
Display
Size: 2.5" diagonal |
|
Display
Type: Backlit LCD |
|
Channels:
All U.S., International & Canada
Channels |
|
Weather
Channels: 10 Channels w/NOAA Weather
Alert |
|
Power
Output: 1w or 25w (user selectable) |
|
Frequency
Range (Transmit): 156.025 - 157.425 mHz |
|
Frequency
Range (Receive): 156.050 - 163.275 mHz |
|
Digital
Selectivity Calling (DSC): Class D (EN301025) |
|
Submersion
Standard: JIS-7, 1 meter 30 minutes |
|
Size:
6.375" W x 2.75" H x 5.25" D |
|
| |
|
| |
VHF55sVHF Radios
The VHF55s hand-held marine radio provides a
complete mobile marine communications solution
with the security of rugged submersible design
to withstand the harshest environments. 5/1
Watt power output, and all USA/INTL channels.
|
Display Type: Backlit
LCD |
|
Channels:
All U.S., International & Canada
Channels |
|
Weather Channels: 10 Channels w/NOAA
Weather Alert |
|
Power Output: 1w or 5w (user selectable) |
|
Frequency Range (Transmit): 156.025
- 157.425 mHz |
|
Frequency Range (Receive): 156.050
- 163.275 mHz |
|
Submersion Standard: JIS-7, 1 meter
30 minutes |
|
Size:
2.5" W x 6.25" H
x 1.5" D |
|
Weight: 15.8 ounces |
|
| |
|
| |
VHF55scVHF Radios
The
VHF55sc hand-held marine radio provides a complete
mobile marine
communications solution
with the security of rugged submersible design
to withstand the harshest environments. 5/1
Watt power output, and all USA/INTL channels.
Waterfowl Edition features Advantage Wetlands® Camo
pattern.
|
Display Type: Backlit LCD |
|
Channels:
All U.S., International & Canada
Channels |
|
Weather Channels: 10 Channels w/NOAA
Weather Alert |
|
Power Output: 1w or 5w (user selectable) |
|
Frequency Range (Transmit): 156.025 -
157.425 mHz |
|
Frequency Range (Receive): 156.050 -
163.275 mHz |
|
Submersion Standard: JIS-7, 1 meter 30
minutes |
|
Size:
2.5" W x 6.25" H x 1.5" D |
|
Weight: 15.8 ounces |
|
| |
|
